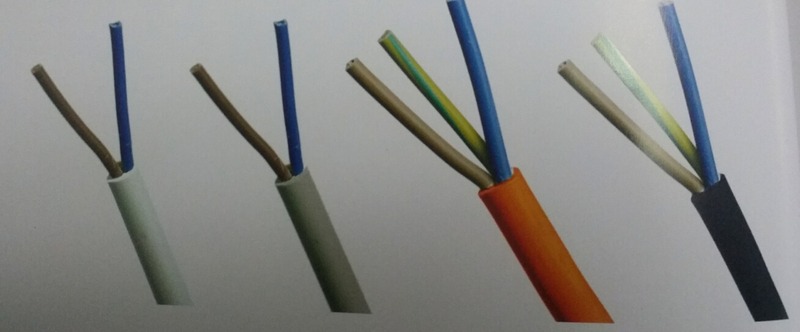

RVV PVC sheathed round cable
227IEC 53(RVV)
PVC insulated PVC sheathed
Rating:300/500v 70C
Standard:GB5023
| No.of conductor | Conductor Normal area(mm) | Construction | Insulation Thickness | Sheath Thickness(mm) | Overall Diameter(mm) | Max Conductor resistance at20C Bare | Tinned |
| 2 | 0.75 | 24/0.20 | 0.6 | 0.8 | 6.4+-0.2/4.0+-0.1*6.4+-0.2 | 26.00 | 26.7 |
| 2 | 1.00 | 32/0.20 | 0.6 | 0.8 | 7.0+-0.2 | 19.50 | 20.1 |
| 2 | 1.50 | 30/0.25 | 0.7 | 0.9 | 8.0+-0.2 | 13.30 | 13.7 |
| 2 | 2.50 | 49/0.25 | 0.8 | 1.1 | 9.8+-0.2 | 7.98 | 8.21 |
| 3 | 0.75 | 24/0.20 | 0.6 | 0.8 | 6.8+-0.2 | 26.00 | 26.7 |
| 3 | 1.00 | 32/0.20 | 0.6 | 0.9 | 7.2+-0.2 | 19.50 | 20.0 |
| 3 | 1.50 | 30/0.25 | 0.7 | 0.9 | 8.5+-0.2 | 13.30 | 13.7 |
| 3 | 2.50 | 49/0.25 | 0.8 | 1.1 | 10.2+-0.2 | 7.98 | 8.21 |
| 3 | 4.00 | 56/0.30 | 1.0 | 1.2 | 13.0+-0.3 | 26.00 | 26.70 |
| 4 | 1.00 | 32/0.20 | 0.6 | 0.9 | 8.0+-0.2 | 19.50 | 20.0 |
| 4 | 1.50 | 32/0.25 | 0.7 | 1.0 | 9.4+-0.2 | 13.30 | 13.7 |
| 4 | 2.50 | 49/0.25 | 0.8 | 1.1 | 11.0+-0.3 | 7.98 | 8.21 |
| 5 | 0.75 | 24/0.20 | 0.6 | 0.9 | 8.4+-0.2 | 26 | 26.7 |
| 5 | 1.00 | 32/0.20 | 0.6 | 0.9 | 8.8+-0.2 | 19.50 | 20.0 |
| 5 | 1.50 | 32/0.25 | 0.7 | 1.1 | 10.6+-0.3 | 13.30 | 13.7 |
| 5 | 2.50 | 49/0.25 | 0.8 | 1.2 | 12.4+-0.3 | 7.98 | 8.21 |
